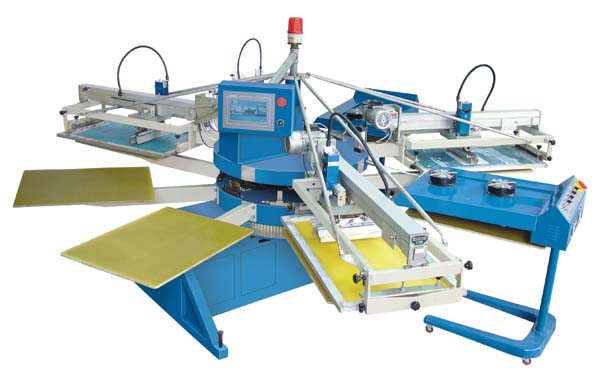

SPE Series Automatic Screen Printing machine for clothes
- Model
- SPE-104/8 SPE-156/10 SPE-158/12
Item specifics
- After-sales Service Provided
- Engineers available to service machinery overseas
- Maz. print Area
- 400×600/500×700mm
- Pallet Size
- 500×700/600×800mm
- Frame Size
- 580×880/680×980mm
- Max.Output
- 700pcs/h
- Weight
- 1800/2400/2600Kg
Review
Description
Device Running Video:
SCREEN PRINTING ON AUTO (THE SHIRT FACTORY SALEM NH)
Basic introduction:
SPE series is the multi functional automatic screen printers. With intellegent micro-processor, touch screen and servo motor driven system equipped, it brings into high printing stability and colors registration tolerance up to ± 0.05 mm. All parts of the machine body are tested precisly before installation, ensuring minimal maintenance and easy operation. The SPE series automatic screen printer must be your ideal printerin printing industry.
Features:
1, Servo motor driven and high-tech system built in
2, Turntable Rotates freely for high positioning nice registration.
3, Print/flood speeds adjusted electrically
4, Print pressure, print strokes, and it angle are adjustable.
5, The movable dryer can be put inside of any print stations as necessary.
Parameters:
|
Model |
SPE-104/8 |
SPE-156/10 |
SPE-158/12 |
|
Print
Color/Station |
4-6/8 |
4-8/10 |
6-10/12 |
|
Maz.
print Area |
500×700/mm |
400×600/mm |
400×600/mm |
|
Pallet
Size |
600×800/mm |
500×700/mm |
500×700/mm |
|
Frame
Size |
680×980/mm |
580×880/mm |
580×880/mm |
|
Air |
≥0.8Mpa |
≥1.0Mpa |
≥1.0Mpa |
|
Max.Output |
700pcs/h |
700pcs/h |
700pcs/h |
|
Power |
2.0Kw |
2.0Kw |
2.9Kw |
|
Dryer
Unit Power |
13.5Kw |
13.5Kw |
13.5Kw |
|
Size |
φ4500×1850/mm |
φ4600×1850/mm |
φ4800×1850/mm |
|
Weight |
1800Kg |
2400 Kg |
2600 Kg |
