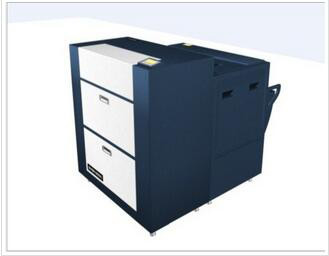

Laser imagesetter For Screen Frame

Group Pre-print Equipment
Min. Order 1 set
Terms of Payment L/C, Western Union, T/T
Update Time 2020-09-25
Item specifics
After-sales Service ProvidedEngineers available to service machinery overseas
Drawing wide660 mm x unlimited length
Record the light sourceSemiconductor red light source
Points and distinguishing rate1800 dpi / 3000 dpi
Output speed100mm/ min (1800dpi)
Basic introduction:
At present,most of the laser photo typesetters on the market are mainly produced by the printing output center, and the software and hardware are usually produced by different manufacturers separately.
Our photo typesetter is specially designed and developed for direct printing users,including RIP processing andvarious image Settings, which fully meets users'requirements of flexibility,safety, speed and low cost.


SLZ - 660

Drawing wide

660 mm x unlimited length

Record the light source

Semiconductor red light source

Points and distinguishing rate

1800 dpi / 3000 dpi

Output speed

100mm/ min (1800dpi)

Scanning way

Go chip

Positioning accuracy

+ / - 0.005 mm

Selection of film

Red laser phototypesetting film

Light spot size

8 microns

The interface type


Way to work

Use reels of film for automatic processing

RIP software

Rips4.0 (Jane/England)

The system platform

PC Windows & Mac OS X

Overall dimensions

1800mm x 1050mm x 1000mm


Single operation without professional training.
