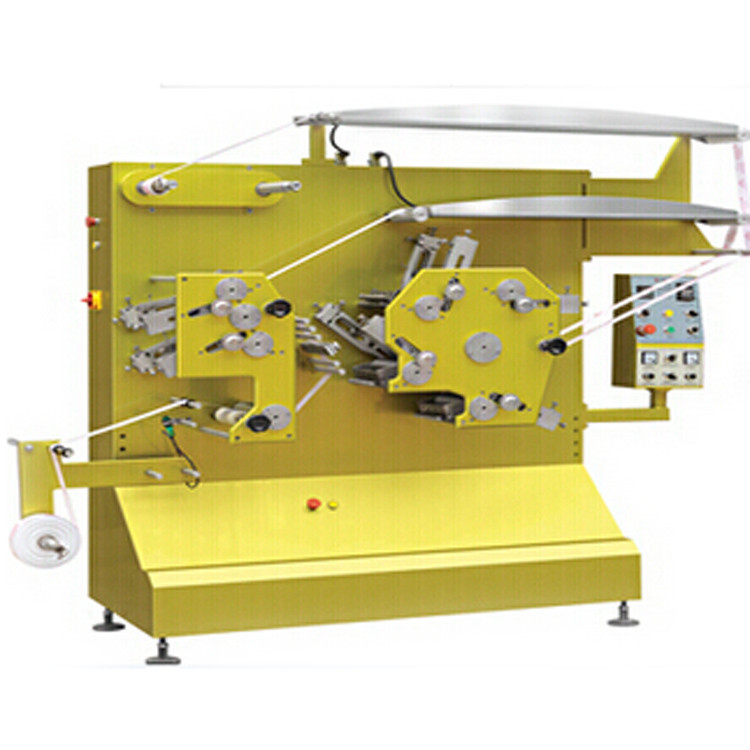

Flexo Fabric Label Printing Machine (4 Colors+2Color)
Flexo Fabric Label Printing Machine (4 Colors+2Color)
Model
SGS4/2

Item specifics

After-sales Service Provided
Engineers available to service machinery overseas
Max Printing Width
150mm
Min Printing Length
106mm
Max Printing Length
401mm
Printing Speed Range
0-60m/min
Total Power
220v,3.5kw
Weight
620kg

Product review

Description

Basic introduction:
4 colors before printing, 2 colors on the back, bright color, better effect, and better black and white.It is used for flexographic label printing of ribbon, cotton tape, woven label,nylon tape, paper tape and ribbon.
Technical indicators:
1. tape of flexographic printing machines
2. it is used for flexographic label printing ribbon, cotton tape, woven label, nylon tape, paper
Features:
1.the printing mechanism of the series is that the ink will spread evenly on the roller first,from the ink roller, the ink transfer to the printing roller.
2.flexographic resin plates will collect the ink and then press the surface of the direct material.
3.the label will be dried to complete the entire printing process.
4.printing label can achieve higher washing fastness by heating the H90 automatic temperature control oven within 3-8 hours of results.
5.colorfastness, strong wash and polish, perfect color registration, different stability of the printing roller.
6.four colors before printing, two on the back, bright color, better effect, and print better in black and white.
7.it is used forflexographic label printing of ribbon,cotton tape, woven label, nylon tape,paper tape and ribbon.
Parameters:

Model

SGS4/2

Printing Color

Front4+Back2

Max Printing Width

150mm

Min Printing Length

106mm

Max Printing Length

401mm

Printing Speed Range

0-60m/min

Total Power

220v,3.5kw

Overall Dimensions(L*W*H)

158*76*188cm

Weight

620kg

Anilox cylinder

Standard 180lpi,also can be customed,such as 150lpi,300lpi and 500lpi,to meet different printing requirement.

Rewinding Diameter

420mm

Unwinding Diameter

420mm
