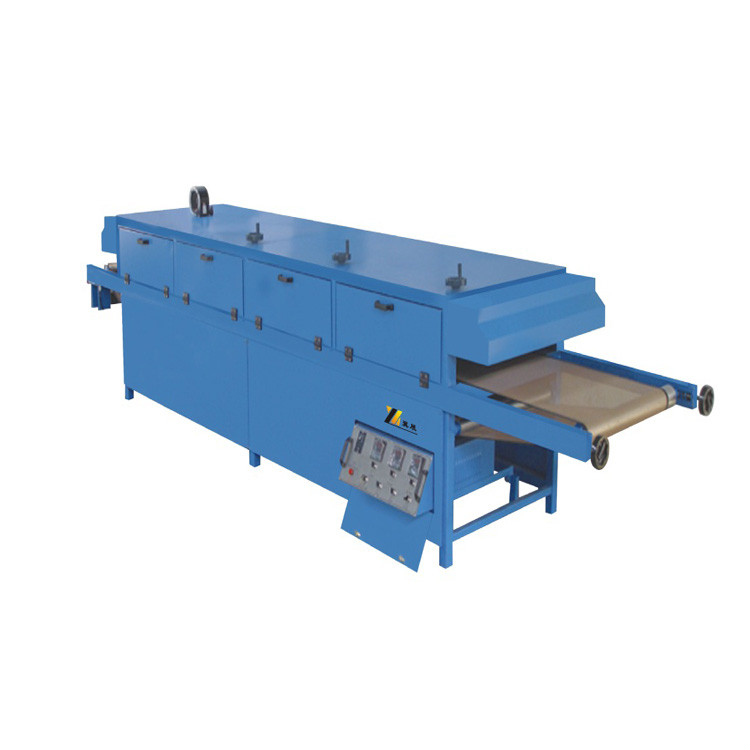

SCD Series Conveyor Dryer For Screen Printing Machine

Group Other Machines
Min. Order 1 set
Terms of Payment L/C, Western Union, T/T
Update Time 2020-09-25
Item specifics
After-sales Service ProvidedEngineers available to service machinery overseas
Speed8m/min (Adjustable)
Belt Width800-1200/mm(Optional)
Max. Temperature200℃
Tunnel Length4000-12000/mm(Optional)
Size(5560-13560)×1320×1300/mm
Voltage/Frequency3Ph 380V/50Hz
Device Running Video:
SCD Conveyor dryer working
Basic introduction:
The SCD series tunnel dryer is the last key equipment involved in the whole printing process. Wide conveyor belt and high power infrared lamp ensure better drying efficiency. The three built-in independent turbine fans have the functions of hot gas circulation,cooling and removing steam and waste gas. High precision temperature controller and thermocouple sensor can quickly raise the temperature in the oven chamber to the preset value.In addition, the SCD series tunnel dryer has the following features: adjustable distance between lamp tube and conveyor belt, glass fiber conveyor belt coated by iron load dragon,high-strength electroplating roller and double-layer asbestos filled cast iron plate. The temperature control digital display panel and automatic heat shutoff system when the temperature exceeds the predetermined value make the SCD series tunnel dryer your most ideal, economical and effective drying equipment.
Features:
1. Three built-in independent turbine fans have the functions of hot gas circulation, cooling and removing steam and waste gas
2. Three independently controlled baking areas
3. Temperature control digital display panel
4. Equipped with automatic heat source shutdown function
5. The distance between the lamp tube and the surface of the conveyor belt can be adjusted
6. High-strength electroplating roller
7. Input/output length can be set separately according to customer requirements
8. Baking track can be lengthened
9. One-year warranty and lifetime maintenance
Parameters:

Model

SCD

Speed

8m/min (Adjustable)

Belt Width

800-1200/mm(Optional)

Max. Temperature

200

Tunnel Length

4000-12000/mm(Optional)

Size

(5560-13560)×1320×1300/mm

Voltage/Frequency

3Ph 380V/50Hz

Heat Power

20-60Kw
