SFB Clam Screen Printer For Paper（Solo Color）
- Model
- SFB-8060 SFB-9060 SFB-12060 SFB-12080
Item specifics
- Print Size
- 600*800/600*900/600*1200/80*1200mm
- Color
- One
- Model
- SFB
- Printing For
- T-shirt,clothes
- After-sales Service Provided
- Engineers available to service machinery overseas
Review
Description
Device Running Video:

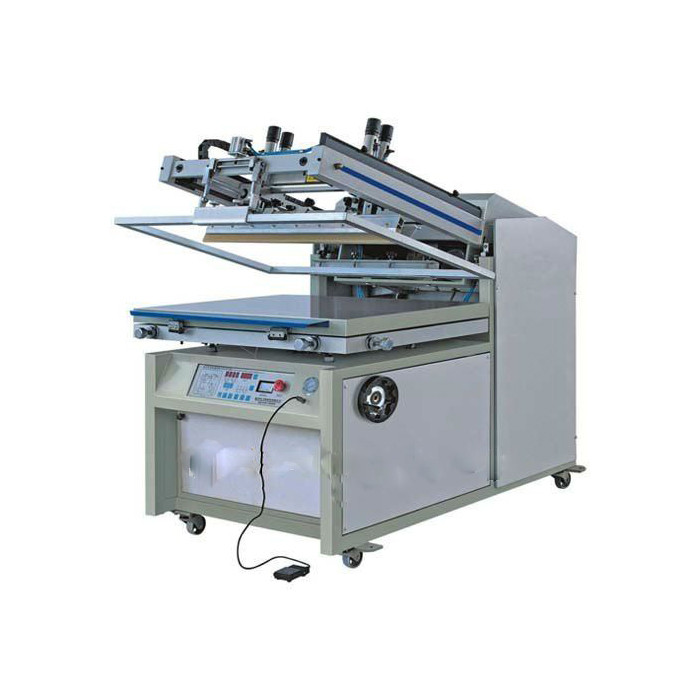

SFB Clam screen printing machine for paper
Basic introduction:
This series of flat screen printing machine is widely used in the packaging industry (such as: cigarette box packaging, wine box packaging, gift box packaging, cosmetic box packaging and so on card printing),trademarks,calendars, oil paintings,computer keyboard, New Year pictures,transfer paper,adhesive, credit card printing;Also applicable to electronic industry related printing .Its main features include; Motor drive, action quick,uniform speed,speed adjustable,the rise and fall of oblique arm driven by motor,frequency control of motor speed, the machine running smoothly, ink scraper and back knife has a pressure adjusting device, and the thickness of the printing size is adjustable, worktable with up and down, left and right, front and rear trimming device, make the version more accurate, convenient, and the other is equipped with reliable according to the former system.
Features:
1. Microcomputer with fault display diagram, for future maintenance of the machine
2. The printing adopts four cylinders. The printing effect reaches the average pressure and the net line isclear
3. Adopt double-table adaptive system, easy adjustment and accurate positioning.
4. Printing adopts frequency conversion speed adjustment, so that printing and ink recycling can be adjusted independently, and it can be adapted to a variety of planar printing
5. Printing travel crank is driven.
Parameters:
|
MODEL |
SFB-8060 |
SFB-9060 |
|
MAX.PRINTIGN
SIZE |
800x600mm |
900x600mm |
|
WORKTABLE
SIZE |
900x800mm |
1000x800mm |
|
MAX.FRAME
SIZE |
1000x850mm |
1100x850mm |
|
AIR
PRESSURE |
0.4-0.6mpa |
0.4-0.6mpa |
|
MAX.PRINTING
SPEED |
1200t/h |
1200t/h |
|
POWER |
2.2kw |
2.2kw |
|
WEIGHT |
550kg |
580kg |
|
MACHINE
SIZE |
1570x1080x1450mm |
1570x1080x1450mm |
|
MODEL |
SFB-12060 |
SFB-12080 |
|
MAX.PRINTIGN
SIZE |
1200x600mm |
1200x800mm |
|
WORKTABLE
SIZE |
1300x800mm |
1300x1000mm |
|
MAX.FRAME
SIZE |
1400x850mm |
1400x1100mm |
|
AIR
PRESSURE |
0.4-0.6mpa |
0.4-0.6mpa |
|
MAX.PRINTING
SPEED |
1100t/h |
1000t/h |
|
POWER |
3.2kw |
3.2kw |
|
WEIGHT |
620kg |
800kg |
|
MACHINE
SIZE |
1570x1380x1450mm |
1850x1380x1450mm |
