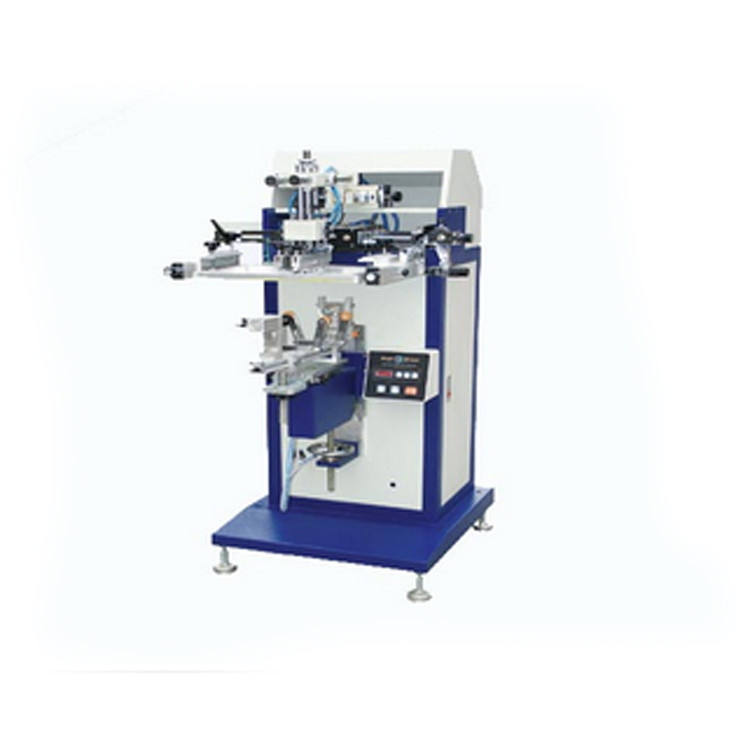

SPC Series Pneumatic Cylindrical Screen Printing Machine

Model: SPC300 SPC450 SPC700 SPC1000

Item specifics

After-sales Service Provided: Engineers available to service machinery overseas

Maximum frame size: 480X280/630X380/880X380/1180X380mm

Maximum printing speed: 500/700/1000pcs/hr

Maximum printing area: 150X260/200X420/660X210/950X300mm

Maximum printing height: 100/240/320/380mm

Gas consumption: 60/85/80/90L/min(6bar)

Review

Description

Device Running Video:

Cylinder Screen printing machine

Features:

1. Microcomputer controls all functional movements with high degree of automation and easy operation.

2.Set a five-digit automatic counter inside.

3. it has the printing function of plane, circle and curved surface.

4.Automatic oil scraping, oil return, working table lifting, etc., which is easy to operate and ensures thestable printing quality.

5.Printing travel and speed can be adjusted to meet different printing requirements.

6.Automatic balancing oil knife to ensure the balance of printing pressure.

7. The working table can be fine-tuned up and down, and the net frame can be fine-tuned up and down, leftand right, and up and down. The printing precision is high, and the adjustment is convenient and fast.

Parameters:

Type	SPC300	SPC450
Maximum frame size	480X280mm	630X380mm
Maximum printing speed	1000pcs/hr	1000pcs/hr
Maximum printing area	150X260mm	200X420mm
Maximum printing height	100mm	240mm
Gas consumption	60L/min(6bar)	85L/min(6bar)
Installation dimensions	1020X820X1420mm	1100X980X1520mm
Heavy volume	140Kg	215Kg

Type	SPC700	SPC1000
Maximum frame size	880X380mm	1180X380mm
Maximum printing speed	700pcs/hr	500pcs/hr
Maximum printing area	660X210mm	950X300mm
Maximum printing height	320mm	380mm
Gas consumption	80L/min(6bar)	90L/min(6bar)
Installation dimensions	973X1292X4620mm	973X1592X1720mm
Heavy volume	430Kg	530Kg
