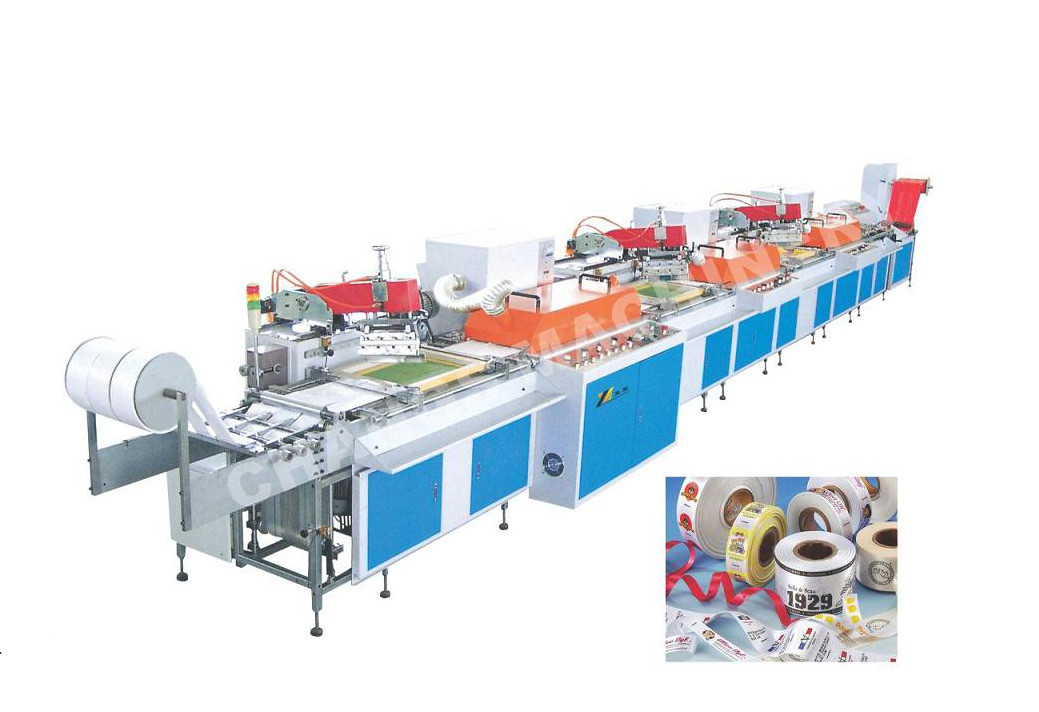

SPR Series Roll to Roll Multi-color Automatic Screen Printing Machine
- Model
- SPR300 SPR400 SPR500
Item specifics
- After-sales Service Provided
- Engineers available to service machinery overseas
- Printing color
- 1-7 colors
- Maximum printing area
- 260X500/350X500/500X700mm
- Printing speed
- 300-900p/h
- Max screen frame size
- 450X800/550X800/700X1000mm
- Drying power
- 2-3.5kw/pc
Review
Description
Device Running Video:
SPR Roll to Roll for PP Film
SPR Roll to Roll for PVC Film
Basic introduction:
Automatic pilot printing machine is also called automatic water pulp printing machine,which is the most representative new flat screen printing machine in the printing industry. It operation good stability,high precision, production speed, easy operation, low mechanical failure rate,less maintenance, save energy in the direction of the design and processing,fully meet the needs of more varieties of pattern printing process, this machine is a advanced science and technology of textile printing and dyeing machinery products, leading the industry, printing industry is the only choice, and be your best business partner. Suitable for natural or synthetic fibers or blends of flat or knitted fabrics such as bath towels, towels, carpets,sweaters,children's wear, women's wear, pajamas,nightgowns, men's wear t-shirts, etc.
Features:
1. OMRON programmable controller(PLC) is adopted in the control circuit system of the whole machine to make the circuit control simple, reliable and stable.
2. Pneumatic control printing unit, equipped with adjustable vacuum suction system, can effectively improve the positioning accuracy of printing, and it is equipped with a blower device;
3. The scraping movement and the movement of the surface are respectively controlled by AIRTAC cylinder and frequency conversion, and the operation is more stable and safe with high precision linear guide rail.
4. The printing stroke and the fixed mechanism of screen plate can be adjusted to facilitate the printing are aofdifferent specifications;
5. The printing unit is modularinsize, compact in structure, reasonable in layout and easy to operate.
Parameters:
|
Model |
SPR300 |
SPR400 |
SPR500 |
|
Printing
color |
1-7
colors |
1-7
colors |
1-7
colors |
|
Maximum
printing area |
260X500mm |
350X500mm |
500X700mm |
|
Printing
speed |
300-900p/h |
300-900p/h |
300-900p/h |
|
Max
screen frame size |
450X800mm |
550X800mm |
700X1000mm |
|
Drying
power |
2-3.5kw/pc |
2-3.5kw/pc |
2-3.5kw/pc |
|
Each
additional 1 color length |
3000mm |
3000mm |
2800mm |
|
Dimension（1 color） |
6300X1250X1400mm |
6300X1250X1580mm |
6600X1250X1580mm |
