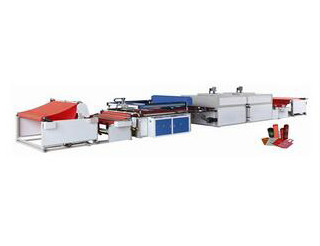

Automatic Roll to roll screen printing machine nonwoven

Model: WFB-1200

Item specifics

After-sales Service Provided: Engineers available to service machinery overseas

Max. print Area: 1200x1100mm

Nonwoven fabric rolls wide: 1250mm

Production speed: 500-1100m/h

Review

Description

Device Running Video:

SPR Roll to Sheet for Non Woven

Features:

1.Automatic feeding, printing,drying and receiving of materials, saving labor and overcoming the constraints of weather conditions;

2.Pressure balance, thick in klayer, suitable for high - grade non - woven products printing;

3.Can use a variety of size plate screen frame;

4.Large print size can print multiple patterns at the same time, greatly improving the working efficiency.

5.The effective pattern clearance before and after full printing can reach the minimum of LCM, effectively reducing material loss.

6.The whole machine drive and over printer system is controlled by servo motor to ensure printing precision.

7.The printing position is accurate and stable, and it can be used in combination with cross cutting machine, cutting machine and non-woven bag making machine, greatly improving the production efficiency.

Parameters:

Model	WFB-1200
Max. print Area	1200x1100mm
Nonwoven fabric rolls wide	1250mm
Non-woven booker weight	45g/m2~100 g/m2
The largest diameter of coil material in discharging machine	800mm
Production speed	500-1100m/h
Total power supply	380V 3P4N 24kw
The equipment size	10500x1800x1720mm
Machine weight	3500kg
